AG Hanger Generator automatically places hangers on MEP linear elements, including pipes, ducts, cable trays, and conduits.
Key Features
1. Extensive Hanger Library (53 Models) The Add-In includes a comprehensive library of hanger types organized by application:
Duct Hangers: Rectangular Rail, Rectangular, Seismic Trapeze, L Hanger, Trapeze Hanger, Side Wall Hanger (Types 01 & 02), Hanger Base I & II, Trapeze for Group Duct
Round Duct Hangers: Circular Round Duct, Side Wall Hanger (Types 01 & 02), Hanger Base Round Duct, Trapeze for Group Round Duct
Pipe Hangers: Circular Clamp (Types 01 & 02), Clevis, Bend, C Hanger, L Hanger (Types 01 & 02), Slide Support, Trapeze for Group Pipes, Double Clamp, Side Wall Hanger (Types 01 & 02), Hanger Base I–IV, Trapeze U Hanger, Braced Trapeze U Hanger, A-Frame Support Base, T-Support Base, Braced T-Support Base, I Hanger, U Hanger, Vertical Hanger, Riser Bracket (Types 01 & 02), Riser Hanger
Cable Tray Hangers: Rectangular Rail, Rectangular, Seismic Trapeze, L Hanger, Side Wall Hanger (Types 01 & 02), Hanger Base I & II, Trapeze for Group Cable Tray
Conduit Hangers: Circular Clamp, Trapeze for Group Conduits
2. Smart Structural Detection Hangers automatically detect and attach to structural elements. Users can choose to hang from structural floors, structural framing, walls, or a combination — including both host elements and linked models.
3. Automated Placement Hangers are placed automatically along ducts, pipes, and cable trays without manual positioning.
4. Dynamic Sizing Hanger sizes adjust automatically when the host element’s size changes.
5. Dynamic Offset Adjustment Hanger offsets update automatically to match changes in element offset.
6. Sloped Element Support The Add-In fully supports sloped MEP elements.
7. Custom Spacing Users can specify the distance between hangers in millimeters.
8. First Hanger Placement Control Set the location of the first hanger and define its offset from the element’s start point.
9. Multi-Element, Multi-Level Workflow Generate hangers across multiple elements on different levels in a single operation.
10. Insulation-Aware The Add-In automatically detects insulation and accounts for it during placement.
11. Automatic Clash Detection and Avoidance The Add-In automatically detects potential clashes and adjusts hanger placement to avoid them.
12. Linked MEP Element Support Automatically place and distribute hangers on ducts, pipes, cable trays, and conduits located in both host and linked Revit models.
13. Revit Compatibility Runs on Autodesk® Revit® 2020, 2021, 2022, 2023, 2024, 2025, 2026, and 2027.

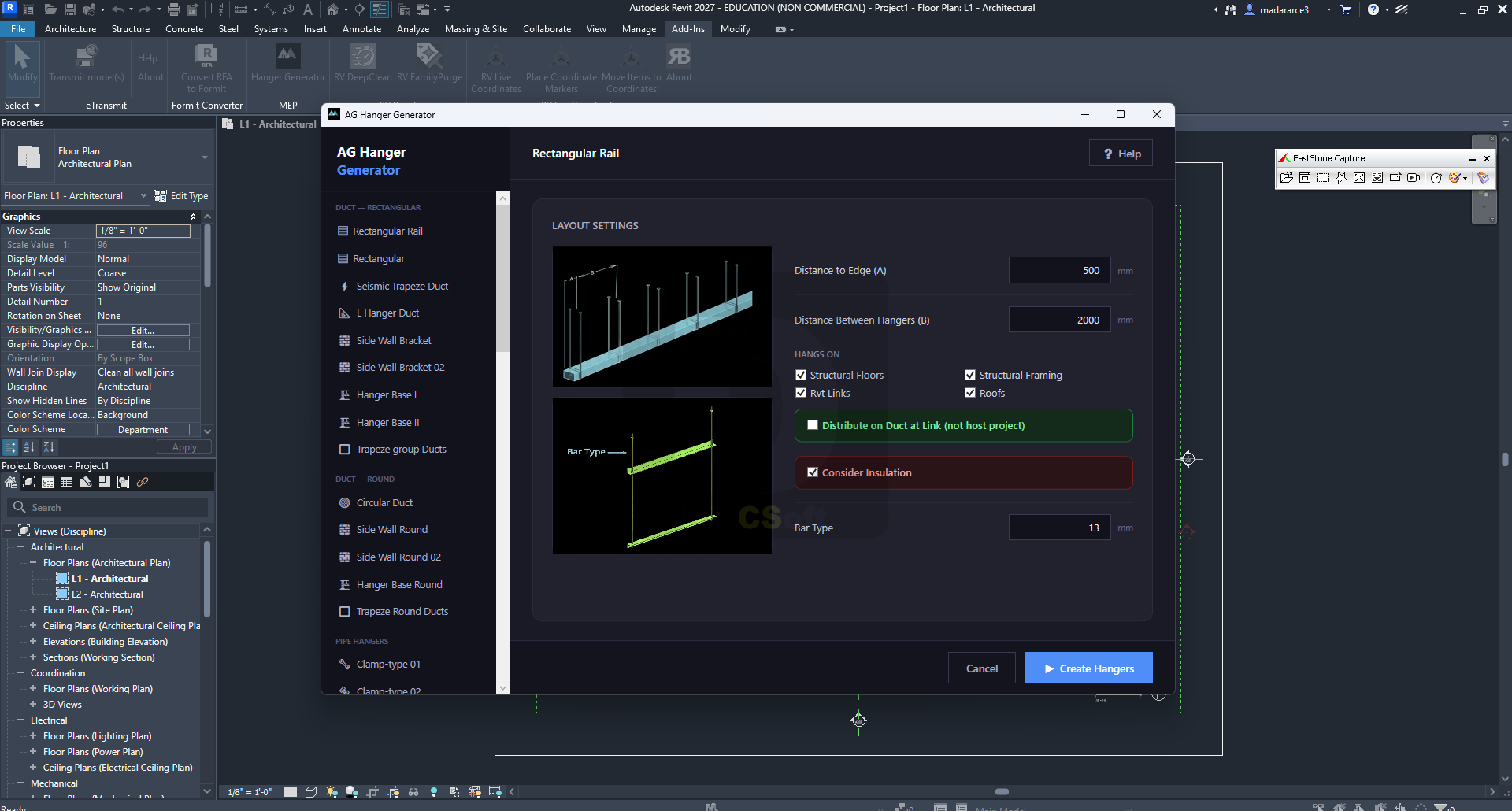

Screenshots
